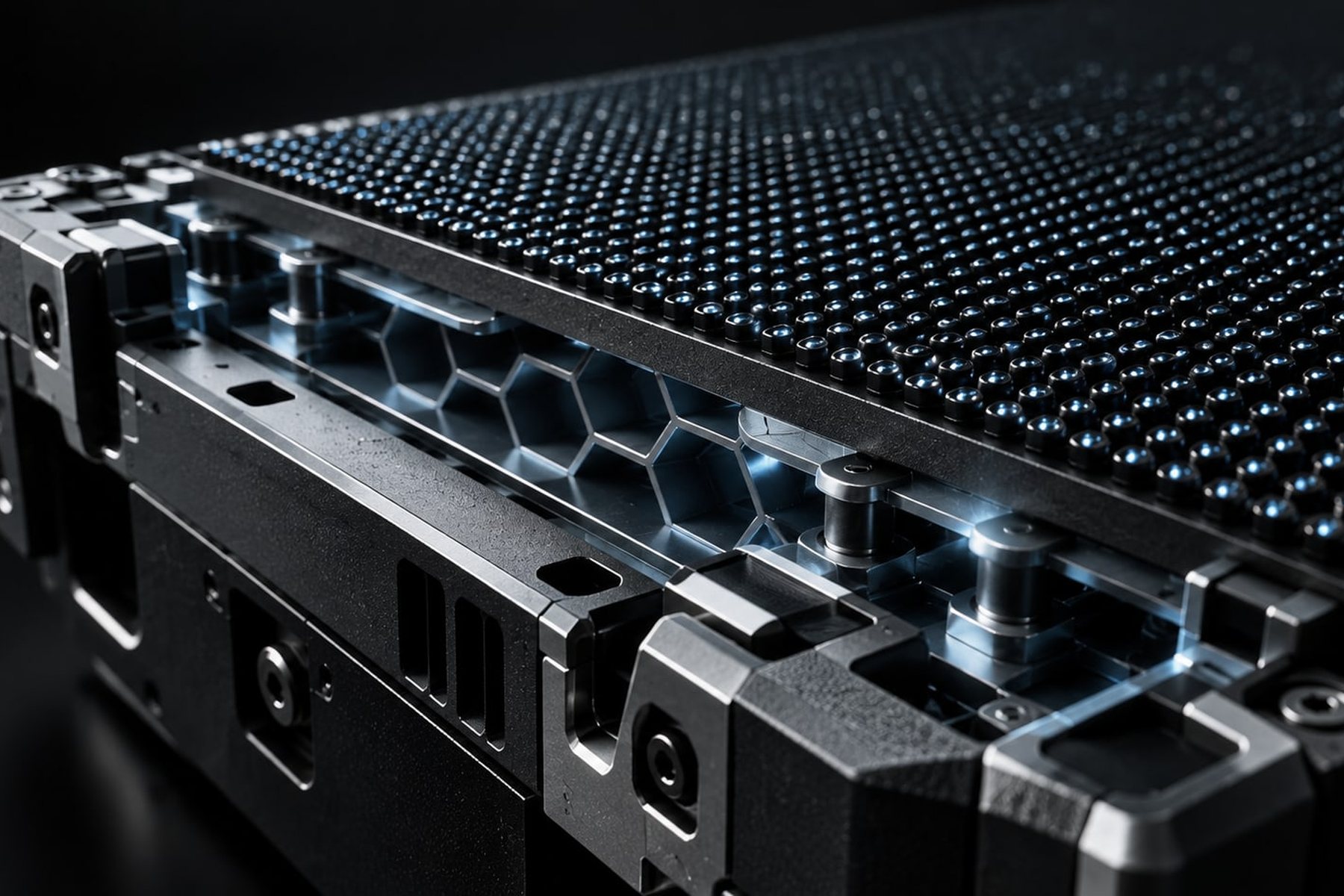

LED screen installation: seven steps from site survey to commissioning

LED screen installation is where a good product becomes a good display or a permanent list of small faults: a visible seam at eye level, a breaker that trips on a white slide, a module nobody can reach without a scaffold. Almost none of these come from the LED cabinets. They come from a wall nobody checked, a drawing nobody approved or a circuit shared with the lighting. This guide sets out the seven steps Xeron follows on every project, from site survey to commissioning. LED wall mounting itself takes two or three days; the survey, drawings and infrastructure before it and the commissioning after it decide the result.

Step 1. Site survey: wall, access, light and power

Every project starts with a site survey, and a video call does not replace it. The first question is what the screen will hang on. Reinforced concrete and structural steel carry an LED wall easily; hollow brick and aerated concrete need through-bolts or a frame spanning from floor to slab; a plasterboard partition carries nothing, so the load must reach the structure behind it. The surveyor records the following.

1. 01Wall type and load capacity, confirmed by the building's engineer or by pull-out tests on sample anchors.
2. 02Access route for the cabinets: door widths, lift size and capacity, stairs and loading bay.
3. 03Nearest and farthest viewing distances, which confirm pixel pitch and mounting height.
4. 04Ambient light in lux at the screen position, at the brightest time of day.
5. 05Power: nearest distribution board, spare capacity, earthing system and cable route.
6. 06Network path from rack to screen as a real cable length.
7. 07Service access, front or rear, and whatever will stand in front of the screen.

Reading the light and the service access

A corporate lobby measures 300 to 500 lux, and a fine-pitch wall there runs at 300 to 500 nits. A façade in direct sun exceeds 100,000 lux, which is why outdoor cabinets start at 5,000 nits. The reading settles the product family, XR Fine or XR Ultra indoors, XR Vision or XR Rugged outside, and our pixel-pitch guide covers the choice of pitch. Service access fixes the depth: a front-service wall sits 60 to 100 mm off the wall, while rear service needs a corridor of at least 600 mm.

Step 2. Design and drawings: exact size, frame and approval

An LED wall cannot be built to an arbitrary size. The finished dimensions are a whole multiple of the cabinet, and the common formats are 500 × 500 mm, 500 × 1,000 mm and the 16:9 cabinet of 600 × 337.5 mm. A niche of 5.0 × 2.8 m therefore takes a 4.8 × 2.7 m screen in 16:9 cabinets or a 5.0 × 2.5 m screen in 500 mm cabinets, and the architect needs to know which before the niche is built. The design fixes the cabinet layout, the exact size, the resolution and every power and data entry point.

Steel frame or wall bracket, and the structural calculation

Behind the cabinets sits either a set of brackets fixed to a sound wall or a steel frame that carries the load to floor and slab. A structural calculation covers the dead load, the anchors and, in Istanbul, seismic action; outdoors it adds wind. The drawing also reserves a ventilation gap, typically 50 to 100 mm of free air behind a front-service wall with openings at bottom and top, so heat rises out of the cavity instead of ageing the power supplies.

Worked example: a 4.8 × 2.7 m fine-pitch lobby wall

Take a 4.8 × 2.7 m lobby wall in XR Fine at 1.25 mm pitch. With 600 × 337.5 mm cabinets it is 8 columns by 8 rows: 64 cabinets and 12.96 m². Each cabinet carries 480 × 270 pixels, so the wall is exactly 3,840 × 2,160, a native 4K canvas with no scaling. At about 27 kg/m² the cabinets weigh roughly 350 kg and the frame adds around 150 kg. Peak power is near 6.5 kW and the average around 2.2 kW, nearly all of which becomes heat in the lobby.

Shop drawings close the stage: elevation with the cabinet grid, wall section, frame and anchor details, single-line diagram and data routing. Client, architect and structural engineer approve them in writing before production starts, which is the last moment at which moving the screen 200 mm has no consequences.

Step 3. Electrical and data infrastructure

Power and data are normally finished before the LED crew arrives, and this is where installations most often go wrong. Peak consumption, 450 to 650 W/m² for indoor fine pitch and 600 to 800 W/m² outdoors, sizes cables and breakers; average consumption, roughly a third of the peak, sizes the running energy and the heat load. The screen gets dedicated circuits from its own distribution board, never shared with lighting or sockets. Breakers are C-curve, to ride through the inrush of hundreds of power supplies, and loaded to no more than 80 percent of their rating.

Earthing, surge protection and UPS

For the lobby wall, 6.5 kW across three phases is under 10 A per phase, so a three-phase supply on 3 × 16 A breakers is comfortable. Every cabinet is earthed and the steel frame is bonded to the building's equipotential bar; an unearthed frame is a safety fault and a source of image noise. A Type 2 surge protector sits at the screen's board, Type 1 and 2 combined outdoors. The controller, player and network switch run on a small online UPS, about 1 kVA, so a supply dip does not reboot the wall into a black frame.

Data: CAT6, fibre and the redundancy loop

Each gigabit link from the controller carries roughly 650,000 pixels at 60 Hz, so the 4K lobby wall needs at least 13 ports; we plan 16, each feeding four cabinets. Shielded CAT6 is reliable to the 100 m limit of the standard, and we design for 80 m at most. Beyond that, outdoors or beside heavy power cabling, the link changes to fibre: around 300 m on multi-mode, kilometres on single-mode. A redundancy loop wires the last cabinet of each chain back to a backup port, so a failed cable mid-chain means a lost frame or two, not a dark column.

Step 4. Structure and LED wall mounting

The frame is the part nobody sees and everybody notices. LED cabinets lock to each other precisely, so they reproduce the surface they are fixed to: a frame that bows 3 mm gives a wall that bows 3 mm, and at 1.25 mm pitch that shows as seams opening and closing across the image. The target is flatness within ±1 mm across the whole frame, and plumb within the same margin, checked with a laser level and a straightedge before a single cabinet is lifted.

Wall-mount, ground-stack or hanging

Wall-mounting is the standard for permanent indoor screens: rails or a welded frame anchored to the structure, with adjustment slots to take out the wall's unevenness. Ground-stacking stands the screen on a floor frame, tied back to the wall only for stability, and suits weak walls and exhibition stands. Hanging from a truss or the slab is the language of XR Event rental systems; it needs certified rigging points with a known working load, never a suspended-ceiling grid.

Outdoor steel: galvanising, wind load and sealing

Outdoors the steel is hot-dip galvanised after fabrication, and site connections are bolted rather than welded so the zinc layer stays intact. Wind load is calculated for the site's location, height and terrain, and it usually governs the design more than weight does. Sealing completes the structure: a top flashing that throws water clear of the cabinets, closed side cladding, drainage at the bottom and cable entries from below through sealed glands.

Worked example: a 6 × 4 m façade screen

A 6 × 4 m façade screen in XR Vision at 6.9 mm pitch uses 500 × 1,000 mm cabinets in 12 columns and 4 rows: 48 cabinets, 24 m² and about 864 × 576 pixels. The cabinets weigh around 840 kg at 35 kg/m², and frame, brackets and cladding bring the total close to two tonnes. A design wind pressure in the order of 1 kN/m² puts about 24 kN of horizontal force on the anchors. Peak load is about 17 kW and the average about 6 kW, on a dedicated three-phase supply with 3 × 40 A protection, and fibre carries the signal from the control room.

Step 5. Cabinet and module fitting

The order of assembly matters. We start at the bottom centre and build the first row outwards in both directions, because errors grow with distance from the starting point. The first row is levelled to within half a millimetre, since every row above inherits its line. Each cabinet is locked to its neighbours by hand, to the same firmness, and fixed to the frame before the next is lifted. After each row the seams are checked with a feeler gauge under raking light: gap and step should stay near 0.1 mm, because at 1.25 mm pitch a 0.2 mm error reads as a bright or dark line.

Module handling and ESD care

On fine-pitch products the modules travel separately and are fitted last. LEDs at the edges sit a fraction of a millimetre from the rim, and a careless thumb knocks them off. Modules stay in their trays until fitting, are held by the edges with anti-static gloves and are never laid face down. Technicians wear earthed wrist straps, because an electrostatic discharge weakens a driver chip that then fails weeks later.

Step 6. Mapping, configuration and calibration

Once the wall is powered, each receiving card is loaded with the configuration file for its module type, which sets scan mode, refresh rate and grey-scale depth. Then the screen is mapped: which port feeds which chain, in what order the cabinets are connected and where each sits on the canvas. A test pattern that prints port and cabinet numbers on every cabinet confirms that the screen matches the drawing.

Calibration, seam correction and test patterns

Modules leave the factory calibrated, with correction coefficients stored on the module, so a wall from one production batch is already uniform. Site calibration sets what the factory cannot know: the white point, normally 6,500 K, the maximum brightness for the room and the gamma curve. Seam correction follows: where a residual gap makes a seam read slightly dark or bright, the pixel rows on either side are adjusted by a few percent until the line disappears. It refines a good mechanical fit; it cannot rescue a poor one.

The last checks use test patterns. A grey-scale ramp at full brightness and again at 10 to 20 percent shows whether the wall holds a neutral grey when dimmed, which matters in lobbies that run at low brightness most of the day. Full red, green, blue, white and black frames reveal dead pixels, a fine grid exposes mapping errors, and filming the wall with a phone confirms that the refresh rate, typically 3,840 Hz, produces no banding.

Step 7. LED display commissioning and handover

LED display commissioning begins with a burn-in. The wall runs for 48 to 72 hours on a cycle of full-colour frames and video at high brightness while the crew logs temperatures. Electronic components fail most often in their first hours of life, so a power supply or a handful of LEDs that were going to fail usually do so in this window, with technicians on site and spares to hand.

A brightness schedule driven by a light sensor, a timetable or both keeps the wall comfortable, perhaps 40 to 50 percent on a bright day and 15 to 20 percent in the evening, which also extends LED life, as our guide to LED screen lifespan and maintenance explains. The content player is locked to the wall's native resolution, pixel for pixel. Operator training takes about two hours. Spare modules of 2 to 3 percent, from the same production batch, are handed over, because LEDs from a later batch differ slightly in colour and show as a patch.

What the handover file contains

1. 01As-built drawings with frame and anchor details and the structural calculation.
2. 02Electrical single-line diagram, breaker schedule and earthing measurements.
3. 03Data diagram with port, chain and cabinet numbering, plus configuration backups.
4. 04Calibration files and the commissioning report with the burn-in log.
5. 05Serial numbers, batch codes, the spare parts inventory and the warranty terms.
6. 06The maintenance plan: a visit every six months indoors and every three to four months outdoors, where bolts, galvanising, seals and drainage are checked as well.

An LED wall is only as flat as the frame behind it and only as dependable as the circuit that feeds it. The cabinets are the easy part.

How long an LED screen installation takes

For an indoor lobby wall such as the 4.8 × 2.7 m example, the survey takes a day and the drawings and approvals about a week. Production and delivery run four to six weeks, during which power and data are prepared on site. The crew then needs one to two days for the frame, two days for cabinets and modules, a day for cabling, mapping and calibration and two to three days of burn-in: about one working week on site, and six to nine weeks from approved drawing to handover.

An outdoor façade takes longer at both ends. Structural engineering and steel design need two to three weeks, fabrication and galvanising another two to three, and the municipal permit runs in parallel and often sets the critical path, as our outdoor LED screen buying guide describes. On site, steel erection takes three to five days, cabinet fitting from a platform or crane two to three, power and data two, and commissioning with burn-in three. Allow two to three weeks on site including weather days, and ten to fourteen weeks overall.

Indoor and outdoor installation: what changes

The seven steps are the same indoors and outdoors; their weight shifts. Indoors the hard parts are precision and finish: fine pitch magnifies every tenth of a millimetre, and the wall goes in after the dusty trades have left. Outdoors the hard parts are load, water and access. Wind governs the steel, cabinets and connectors are sealed to IP65, brightness is ten times the indoor figure, and so is the care given to supply and surge protection. Access is by platform or crane, often at night, and calibration is done after dark and checked again in full sun.

The most common LED screen installation mistakes

1. 01Fixing the frame to plasterboard, hollow brick or an unverified wall.
2. 02Finishing the niche before the cabinet format is chosen.
3. 03Accepting a frame that is out of flat and hoping calibration will hide it.
4. 04Feeding the screen from a shared circuit, or sizing breakers on average load.
5. 05Leaving the frame and cabinets unearthed.
6. 06Running copper data cable beyond its length limit or beside power cabling.
7. 07Closing the cavity behind the screen with no ventilation path.
8. 08Fitting fine-pitch modules while painting or sanding continues in the room.
9. 09Skipping the burn-in to meet an opening date.
10. 010Accepting the wall without same-batch spares, backups or as-built drawings.

What to prepare before the crew arrives

Most lost days on site are not technical: a lift booked by another contractor, a breaker not yet connected, a wall still waiting for paint. We ask every client to confirm the following in writing a week before the start.

1. 01The approved shop drawings, signed, and one site contact with the authority to decide.
2. 02The wall or niche finished to the agreed dimensions, painted and dry, with all dusty work complete.
3. 03Dedicated circuits, earthing and the distribution board installed, tested and live.
4. 04Data cable or fibre pulled and tested from rack to screen, with powered rack space for the controller.
5. 05A clear access route, a booked goods lift and dry, lockable storage close to the wall.
6. 06Work permits and site inductions; outdoors, the municipal permit, the road occupation permit and the crane position.
7. 07Final or test content at the native resolution, so the wall is judged on real material.

Safety: working at height and lifting plans

An LED wall is installed by people working above the floor, handling loads of 8 to 40 kg next to live electrical equipment, so safety is planned, not assumed. We issue a site-specific risk assessment and method statement; anyone working at height holds current training, platforms are driven by certified operators and full-body harnesses are anchored to rated points. Outdoor lifts need a written lifting plan: the weight of each load, the crane's capacity at the working radius, the exclusion zone and the signaller. Cabinets catch the wind like sails, so lifting stops when gusts approach 10 m/s. Circuits are isolated, locked and proved dead before anyone connects a cabinet.

If you are planning an LED screen installation, send Xeron drawings or photographs of the wall, the dimensions you have in mind and the viewing distance, and we will reply with a survey date, a cabinet layout and a project-specific quotation. Pitch, area, structure and access drive it, which is why we quote per project. Use the Start a Project page on xeron.co to begin.
