XR Studio
Ceiling, background, floor studio LED
INDOORXR / VP
1.56–5.9 mm
PIXEL PITCH
1,000–8,000
BRIGHTNESS · NITS
500×500 mm +
CABINET
INDOOR
ENVIRONMENT
01 / OVERVIEW
Tailor-made stages from floor to ceiling.
XR Studio is designed for virtual production, XR , film and broadcast studios — where image accuracy and color consistency are critical. High refresh rates, stable grayscale, and precise color calibration ensure smooth filming and seamless camera-tracking integration.
XR STUDIO — 500×500 mm + CABINET1.56–5.9 mm · 1,000–8,000 NITS

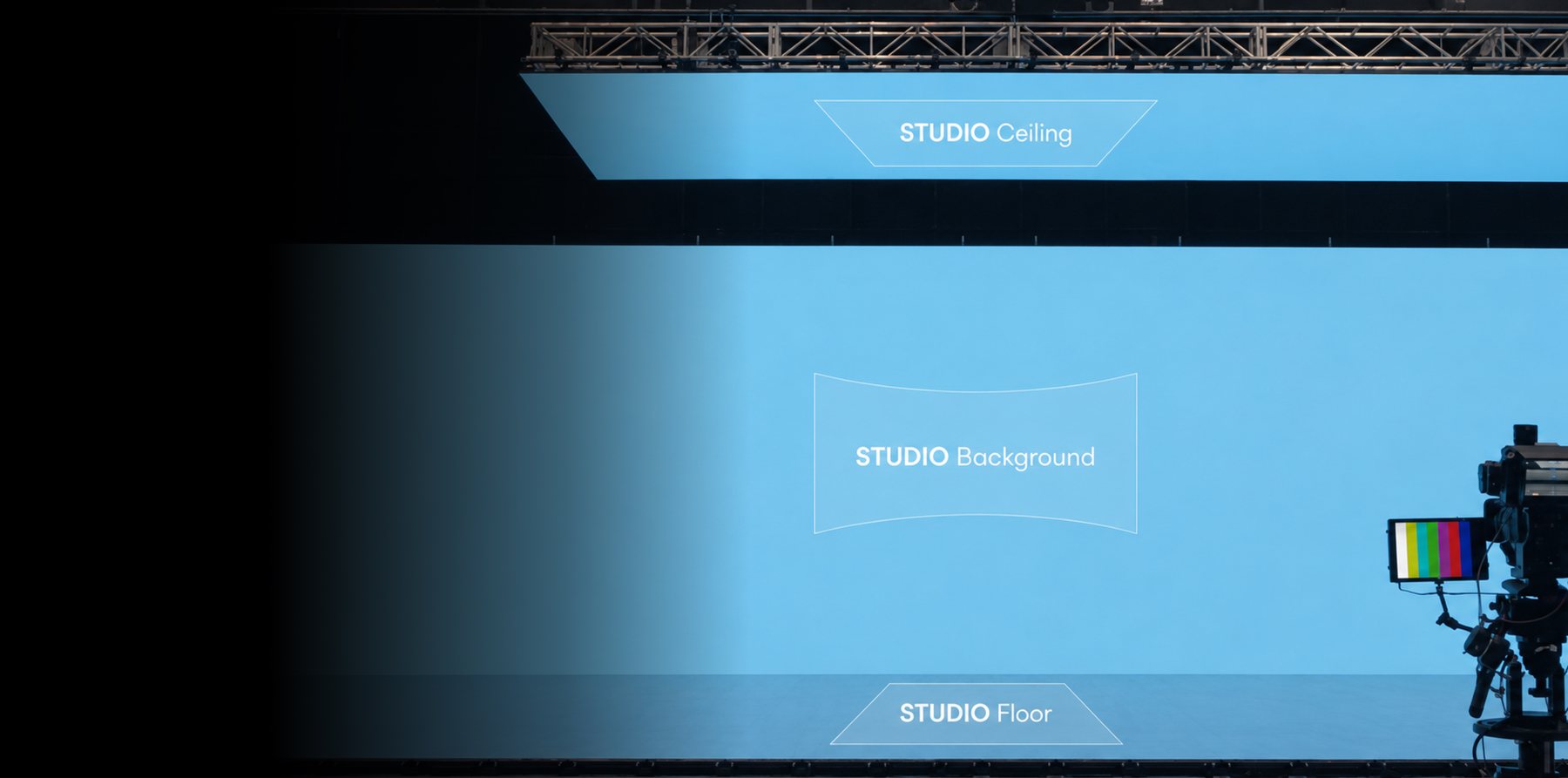

3 surfaces
ceiling, background, and floor — one ecosystem
No shift
color and brightness are stable
1.56 mm
finest background pixel pitch
TECHNOLOGIES INSIDE
01
ArmorLED
ArmorLED combines triple LED reinforcement techniques, 8-pin LEDs, an Enhanced-Pad design and advanced GOE packaging, and it increases LED adhesion strength by 4–10×. The result is a more durable rental display designed to resist impact, transport stress and repeated handling.
02
CBSF
The screen that looks perfect from anywhere. CBSF’s Color & Brightness Shift Free LED arrangement keeps color temperature and brightness uniform across the widest viewing angles.
03
Infinite Colors
Infinite Colors adds a warm-white emitter to RGB in a custom LED package, extending the color spectrum far beyond standard displays. Higher CRI, natural skin tones, and fully customizable white light turn the screen into a true lighting instrument — compatible with Brompton TrueLight and the G1 receiver card.
02 / DESIGN
Engineered as an object.
Installed as a surface.
CABINET500×500 mm +
PIXEL PITCH1.56–5.9 mm
BRIGHTNESS1,000–8,000
ENVIRONMENTINDOOR
FULL TECHNICAL DATASPECIFICATIONS ↓
CONFIGURATIONS
01
XR Backdrop

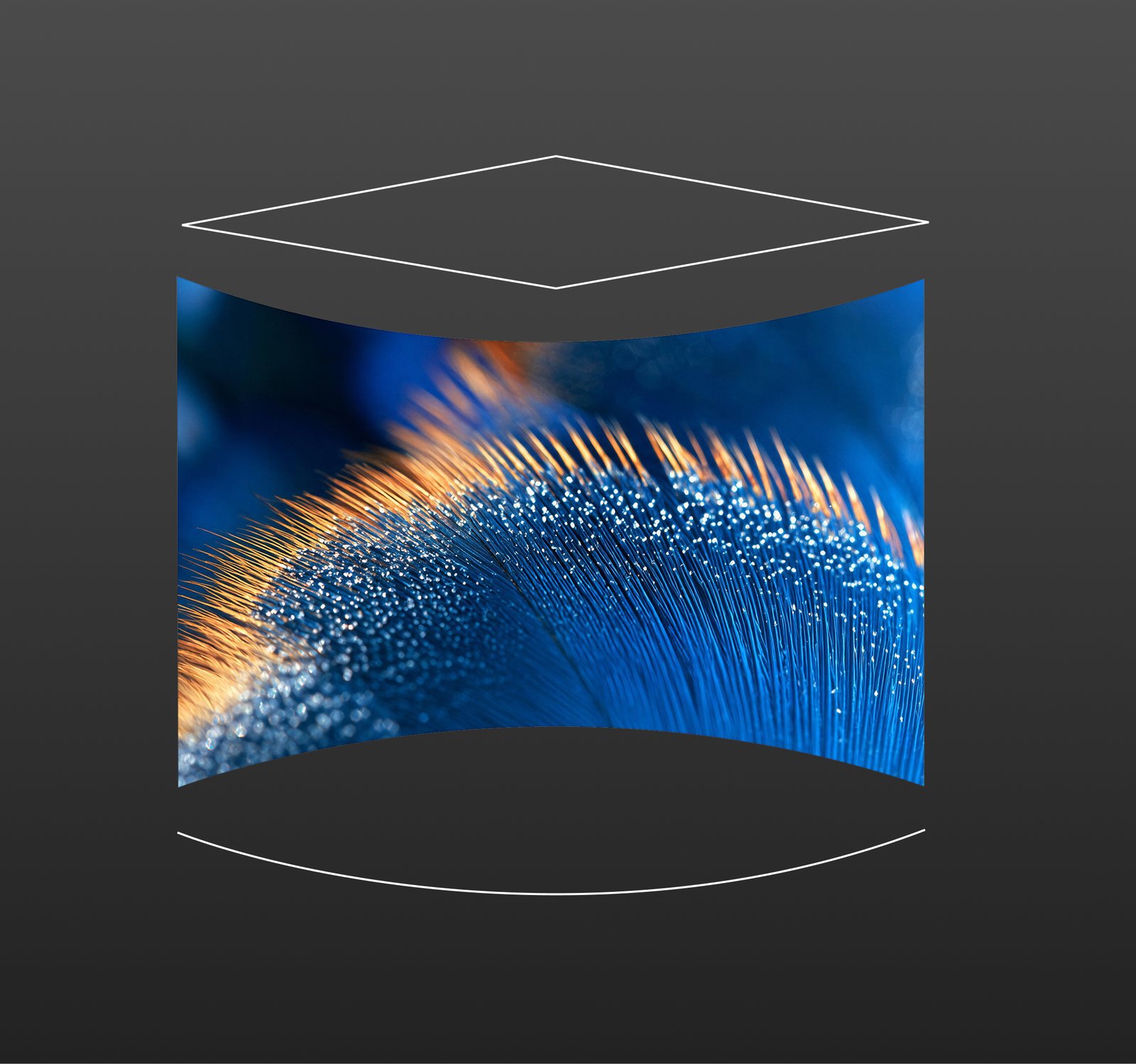

XR Modul, XR Arc, and XR Arc II panels build flat and curved backgrounds — including ±45° arcs — at fine pixel pitches down to 1.56 mm.
02
XR Ceiling
XR Flex ceiling panels deliver 5000 – 8000 nits of overhead illumination and reflection content.
03
XR Deck

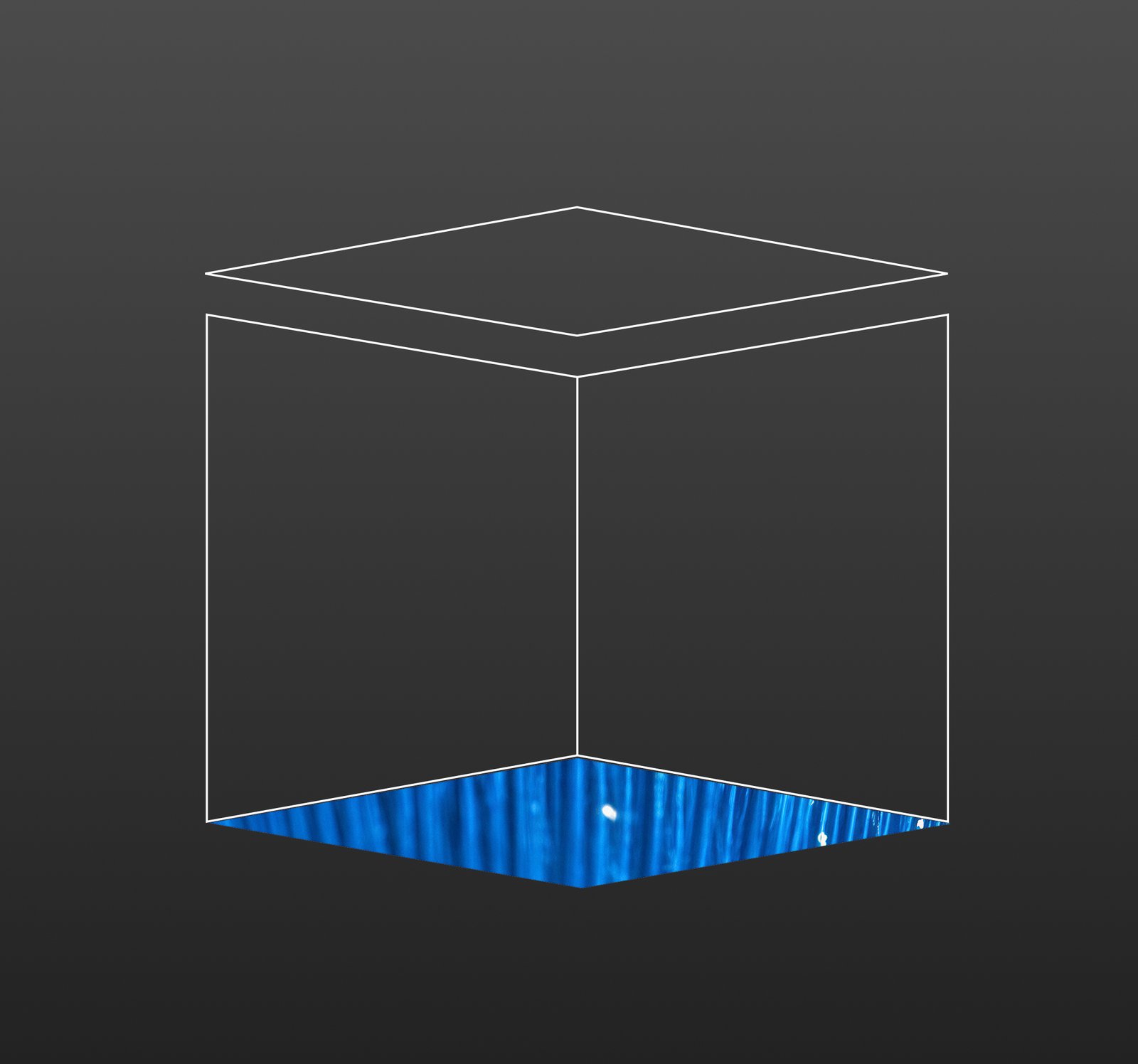

XR Floor load-bearing floor supports performers, vehicles, and crew at 1,500 kg/m² — with anti-slip, anti-reflective surfacing.
03 / KEY FEATURES
Built around
what matters.
01 / 03Stage & Broadcast Modular Ecosystem
Stage & Broadcast Modular Ecosystem
Engineered specifically for production workflows, enabling seamless integration of walls, ceilings, and floors within studio and live environments.
Camera-Optimized Visual Stability
High-refresh architecture combined with precise grayscale calibration ensures flicker-free performance, stable color reproduction, and clean in-camera capture.
Scalable Brightness Performance
Supports both controlled studio lighting conditions and high-impact stage environments without compromising uniformity.
04 / SPECIFICATIONS
Technical data.
Model-level data for the XR Studio platform. Values not yet confirmed are marked and will be populated from the official datasheets.
26 MODELS — SCROLL HORIZONTALLY →
MODEL
IL-RSS-IRDB1.95 VSS M2
DATASHEET
IL-RSS-IRX1.9mk2 M2 CBSF
DATASHEET
IL-RSS-IRDB1.95mk2 M2 CBSF
DATASHEET
IL-RSS-IRDB1.56mk2 MT2 CBSF
DATASHEET
IL-RSS-IRDB1.9 VSS
DATASHEET
IL-RSS-IRX1.9mk2 VSS
DATASHEET
IL-RSS-IRDB1.56m4 VSS
DATASHEET
IL-RSS-IRDB2.6 AD
DATASHEET
IL-RSS-IRDB2.6mk2 MT2 CBSF
DATASHEET
IL-RSS-ORDF2.6mk2 VSS
DATASHEET
IL-RSS-IRX2.6mk2 VSS
DATASHEET
IL-RSS-IRDB2.8 VSS
DATASHEET
IL-RSS-IRDB2.6 VSS
DATASHEET
IL-RSS-IRX2.6mk2 MT2 CBSF
DATASHEET
IL-RSS-IRX2.6mk2 LS
DATASHEET
IL-RSS-IRAR3.9 LS
DATASHEET
IL-RSS-ORDF3.9mk2 VSS
DATASHEET
IL-RSS-ORDF3.9mk2 AD
DATASHEET
IL-RSS-ORDF3.9mk2 LS
DATASHEET
IL-RSS-IRAR3.9 VSS
DATASHEET
IL-RSS-IRAR3.9 AD
DATASHEET
IL-RSS-IRAR3.91-VSS
DATASHEET
IL-RSS-IRAR5.9RGBW
DATASHEET
IL-RSS-IRAR5.9 VSS
DATASHEET
IL-RSS-IRAR5.9 LS
DATASHEET
IL-RSS-IRAR5.9 AD
DATASHEET
GENERAL
IN / OUT
INDOOR
INDOOR
INDOOR
INDOOR
INDOOR
INDOOR
INDOOR
INDOOR
INDOOR
OUTDOOR
INDOOR
INDOOR
INDOOR
INDOOR
INDOOR
INDOOR
OUTDOOR
OUTDOOR
OUTDOOR
INDOOR
INDOOR
INDOOR
INDOOR
INDOOR
INDOOR
INDOOR
LED ARRANGEMENT
IMD M2
IMD M2
IMD M2
IMD MT2
3-in-1 SMD
3-in-1 SMD
MiniLED
3-in-1 SMD
IMD MT2
3-in-1 SMD
3-in-1 SMD
3-in-1 SMD
3-in-1 SMD
IMD 2 in 1
3in1SMD
3-in-1 SMD
3-in-1 SMD
3-in-1 SMD
3-in-1 SMD
3-in-1 SMD
3-in-1 SMD
3 IN 1 SMD
4-in-1 SMD
3-in-1 SMD
3-in-1 SMD
3-in-1 SMD
PHYSICAL
PIXEL PITCH
1.95 mm
1.95 mm
1.95 mm
1.56 mm
1.95 mm
1.95 mm
1.5 mm
2.6 mm
2.6 mm
2.6 mm
2.6 mm
2.84 mm
2.6 mm
2.56 mm
2.6 mm
3.91 mm
3.91 mm
3.91 mm
3.91 mm
3.91 mm
3.91 mm
3.91 mm
5.95 mm
5.95 mm
5.95 mm
5.95 mm
PHYSICAL DENSITY
262,144 px/m²
262,144 px/m²
262,144 px/m²
409,600 px/m²
262,144 px/m²
262,144 px/m²
409,600 px/m2
147,456 px/m²
147,456 px/m²
147,456 px/m²
147,456 px/m²
123,904 px/m²
147,456 px/m²
147,456 px/m²
147,456pixel/m2
65,536 px/m²
65,536 px/m²
65,536 px/m²
65,536 px/m²
65,536 px/m²
65,536 px/m²
65,536 px/m²
28,224 px/m²
28,224 px/m²
28,224 px/m²
28,224 px/m²
MODULE RESOLUTION (H/V)
128 × 128 px
256 × 64 px
128 × 128 px
160 × 160 px
128 × 128 px
256 × 64 px
160 × 160 px
96 × 96 px
96 × 96 px
96 × 96 px
192 × 48 px
88 × 88 px
96 × 96 px
192 × 48 px
192 × 48 px
64 × 128 px
64 × 64 px
64 × 64 px
64 × 64 px
64 × 128 px
64 × 128 px
64 × 128 px
42 × 84 px
42 × 84 px
42 × 84 px
42 × 84 px
MODULE DIMENSIONS
250 × 250 mm
500 × 125 mm
250 × 250 mm
250 × 250 mm
250 × 250 mm
500 × 125 mm
250 × 250 mm
250 × 250 mm
250 × 250 mm
250 × 250 mm
500 × 125 mm
250 × 250 mm
250 × 250 mm
500 × 125 mm
500 × 129 mm
250 × 500 mm
250 × 250 mm
250 × 250 mm
250 × 250 mm
250 × 500 mm
250 × 500 mm
250 × 500 mm
250 × 500 mm
250 × 500 mm
250 × 500 mm
250 × 500 mm
CABINET RESOLUTION (H/V)
256 × 256 px
256 × 256 px
256 × 256 px
320 × 320 px
256 × 256 px
256 × 256 px
320 × 320 px
192 × 192 px
192 × 192 px
192 × 192 px
192 × 192 px
176 × 176 px
192 × 192 px
192 × 192 px
192 × 192 px
128 × 256 px
128 × 128 px
128 × 128 px
128 × 128 px
128 × 256 px
128 × 256 px
128 × 256 px
84 × 168 px
84 × 168 px
84 × 168 px
84 × 168 px
CABINET DIMENSIONS
500 × 500 mm
500 × 500 mm
500 × 500 mm
500 × 500 mm
500 × 500 mm
500 × 500 mm
500 × 500 mm
500 × 500 mm
500 × 500 mm
500 × 500 mm
500 × 500 mm
500 × 500 mm
500 × 500 mm
500 × 500 mm
500 × 500 mm
500 × 1000 mm
500 × 500 mm
500 × 500 mm
500 × 500 mm
500 × 1000 mm
500 × 1000 mm
500 × 1000 mm
500 × 1000 mm
500 × 1000 mm
500 × 1000 mm
500 × 1000 mm
CABINET WEIGHT
9.4 kg (20.72lb)
8.3 kg (18.30lb)
8.4 kg (18.52lb)
8.4 kg (18.52lb)
8.8 kg (19.40lb)
8.3 kg (18.30lb)
9.3 kg (20.50lb)
8.8 kg (19.40lb)
7.8 kg (17.20lb)
11.5 kg (25.35lb)
8.3 kg (18.30lb)
8.8 kg (19.40lb)
8.8 kg (19.40lb)
8.3 kg (18.30lb)
8.3 kg (18.30lb)
11.3 kg (24.91lb)
11.5 kg (25.35lb)
11.5 kg (25.35lb)
11.5 kg (25.35lb)
11.3 kg (24.91lb)
11.3 kg (24.91lb)
11.3 kg (24.91lb)
12.5 kg (27.56lb)
10.9 kg (24.03lb)
10.9 kg (24.03lb)
10.9 kg (24.03lb)
OPTICAL
BRIGHTNESS
1000 nits
1000 nits
1200 nits
1400 nits
1200 nits
1200 nits
1500 nits
1400 nits
1500 nits
1200 nits
2000 nits
2000 nits
2000 nits
1200 nits
1200 nits
5000 nits
1500 nits
1200 nits
1200 nits
5000 nits
5000 nits
5000 nits
8000 nits
5000 nits
5000 nits
5000 nits
REFRESH RATE
7,680 Hz
7,680 Hz
7,680 Hz
7,680 Hz
7,680 Hz
7,680 Hz
7,680 Hz
3,840 Hz
7,680 Hz
7,680 Hz
7,680 Hz
7,680 Hz
7,680 Hz
7,680 Hz
7,680 Hz
7,680 Hz
7,680 Hz
7,680 Hz
7,680 Hz
7,680 Hz
7,680 Hz
7,680 Hz
3,840 Hz
7,680 Hz
7,680 Hz
7,680 Hz
SCAN RATE
1/8
1/8
1/8
1/16
1/8
1/8
1/10
1/16
1/8
1/16
1/8
1/8
1/8
1/8
1/8
1/8
1/8
1/8
1/8
1/8
1/8
1/8
1/7
1/7
1/7
1/7
VIEWING ANGLE (H/V)
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
ELECTRICAL
MAX POWER (W / PANEL)
150 W
150 W
120 W
160 W
180 W
160 W
180 W
180 W
170 W
180 W
180 W
180 W
180 W
150 W
180 W
360 W
210 W
210 W
210 W
360 W
360 W
300 W
360 W
360 W
360 W
360 W
AVG POWER (W / PANEL)
50 W
50 W
40 W
55 W
60 W
54 W
60 W
60 W
57 W
60 W
60 W
60 W
60 W
50 W
60 W
120 W
70 W
70 W
70 W
120 W
120 W
100 W
120 W
120 W
120 W
120 W
OPERATING POWER SOURCE
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC 50-60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
SIGNAL INPUT
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI, HDMI, DP, SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI,DVI,HDMI,DP,SDI,DP,SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI, HDMI, DP, SDI
Fiber cable
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
DVI · HDMI · DP · SDI
ENVIRONMENTAL
IP RATING
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
OPERATING TEMPERATURE
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
TRANSPARENCY
Datasheet pending
0%
0%
0%
0%
0%
0%
0%
0%
Datasheet pending
0%
0%
0%
Datasheet pending
0%
0%
Datasheet pending
Datasheet pending
Datasheet pending
0%
0%
0%
-
0%
0%
0%
CERTIFICATIONS
CE · FCC · RoHS · ETL.Fireproof
CE · FCC · ETL · RoHS · REACH
( CE · FCC · ROHS · REACH · WEEE ) in process
( CE · FCC · ROHS · REACH · WEEE ) in process
CE · FCC · RoHS · ETL.Fireproof
CE · FCC · ETL · RoHS · REACH
CE, FCC, RoHS, ETL, Fireproof
CE · FCC · RoHS · ETL.Fireproof
( CE · FCC · ROHS · REACH · WEEE ) in process
CE · FCC · RoHS · ETL.REACH
CE · FCC · ETL · RoHS · REACH
CE · FCC · RoHS · ETL.Fireproof
CE · FCC · RoHS · ETL.Fireproof
CE · FCC · ETL · RoHS · REACH
CE,FCC,ETL,RoHS,REACH
CE · ETL · FCC · RoHS
CE · FCC · RoHS · ETL.Fireproof
CE · FCC · RoHS · ETL.Fireproof
CE · FCC · RoHS · ETL.Fireproof
CE · ETL · FCC · RoHS
CE · ETL · FCC · RoHS
Datasheet pending
CE · ETL · FCC · RoHS
CE · ETL · FCC · RoHS
CE · ETL · FCC · RoHS · REACH · WEEE · Fireproof
CE · ETL · FCC · RoHS · REACH · WEEE · Fireproof
* Calculated from pitch and cabinet size — pending confirmation from the official datasheet.
05 / IN THE FIELD
Projects built
with XR Studio.
ALL PROJECTS →
XERON POWERS UP THE UAE’S STATE-OF-THE-ART PRODUCTION STUDIO — UAE

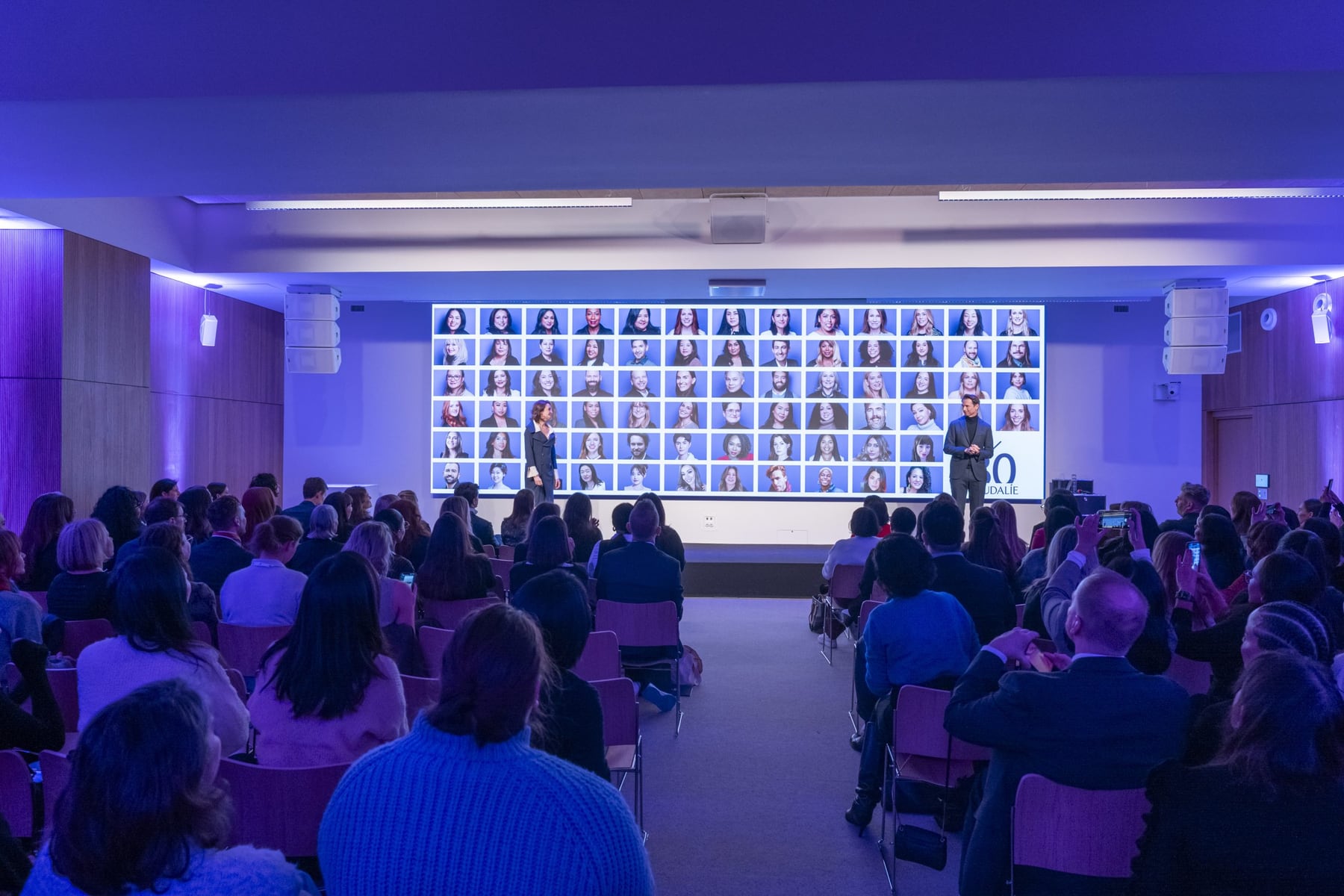

XERON AND VIDEOSONIC BROUGHT BROADCAST-QUALITY LED TO CAUDALIE’S RETREAT — FRANCE / 2026
