XR Fine
Indoor LED display
INDOORCorporateControl RoomRetailXR / VP
1.2–3.1 mm
PIXEL PITCH
800–1,500
BRIGHTNESS · NITS
600×337.5 mm
CABINET
INDOOR
ENVIRONMENT
01 / OVERVIEW
Technology you never see. Content you never forget.
XR Fine is a premium indoor fine-pitch display built for indoor environments where thermal control, reliability, and architectural integration are critical. Featuring Xeron's ColdLED technology, XR Fine significantly reduces operating temperature and power consumption for extended LED lifespan.
XR FINE — 600×337.5 mm CABINET1.2–3.1 mm · 800–1,500 NITS
50%
less power than standard LED
29,5 mm
total screen depth – paper thin
8K
max resolution supported
TECHNOLOGIES INSIDE
01
ColdLED
ColdLED eliminates it — extending lifespan and maintaining brightness where others fade.
02
SolidSkin
SolidSkin’s protective layer and IP65 front rating shields every LED against moisture, dust, and impact — delivering softer, smoother visuals across the entire display.
02 / DESIGN
Engineered as an object.
Installed as a surface.
CABINET600×337.5 mm
PIXEL PITCH1.2–3.1 mm
BRIGHTNESS800–1,500
ENVIRONMENTINDOOR
FULL TECHNICAL DATASPECIFICATIONS ↓
CONFIGURATIONS
01

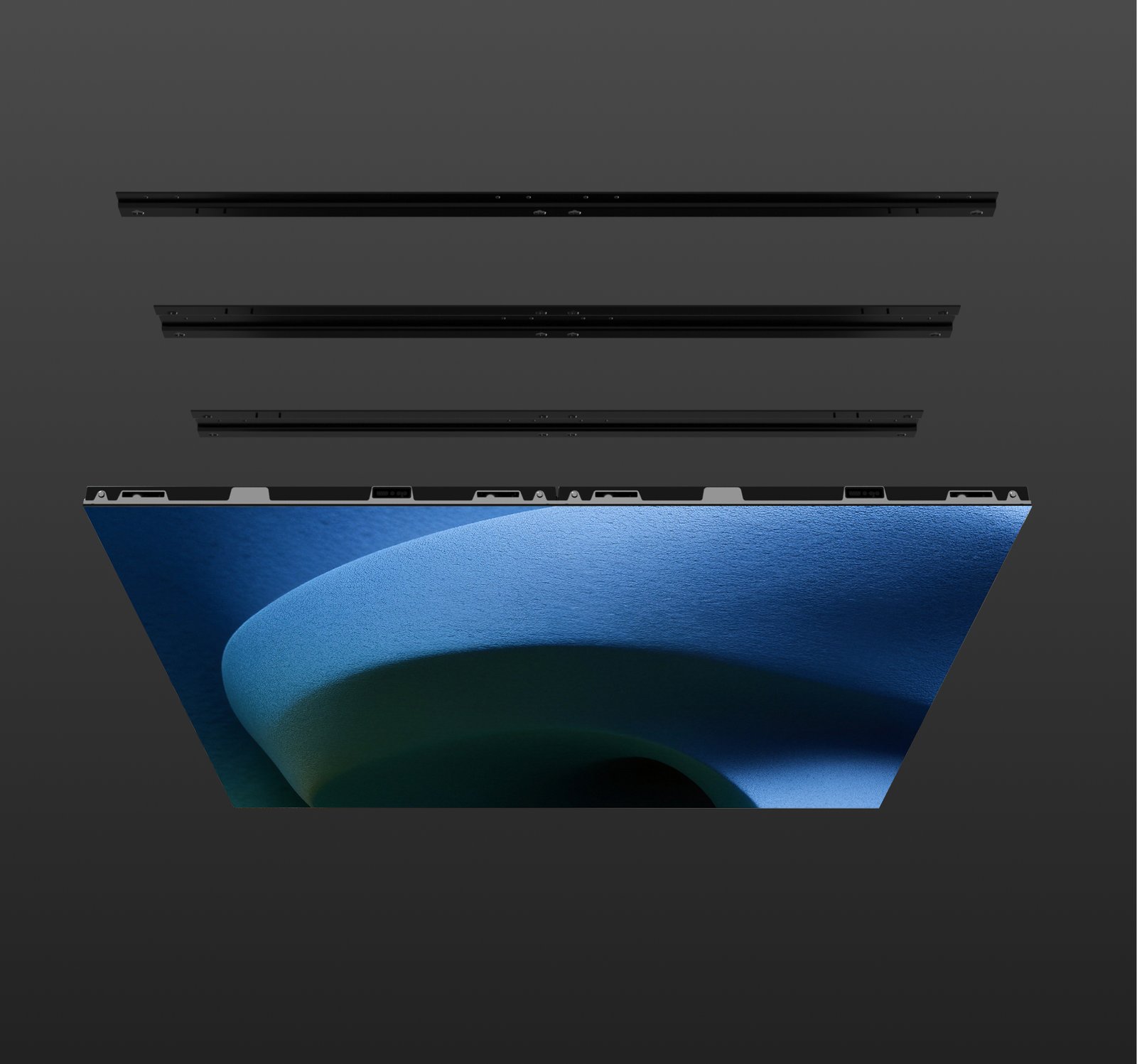

Wall-mounted
Slim floating bracket. 37mm total depth. Flat, seamless finish — front service access without removing the panel.
02
Mobile Stand
Transforms into a high-definition mobile display. Anti-collision safety rim protects LEDs in transit.
03

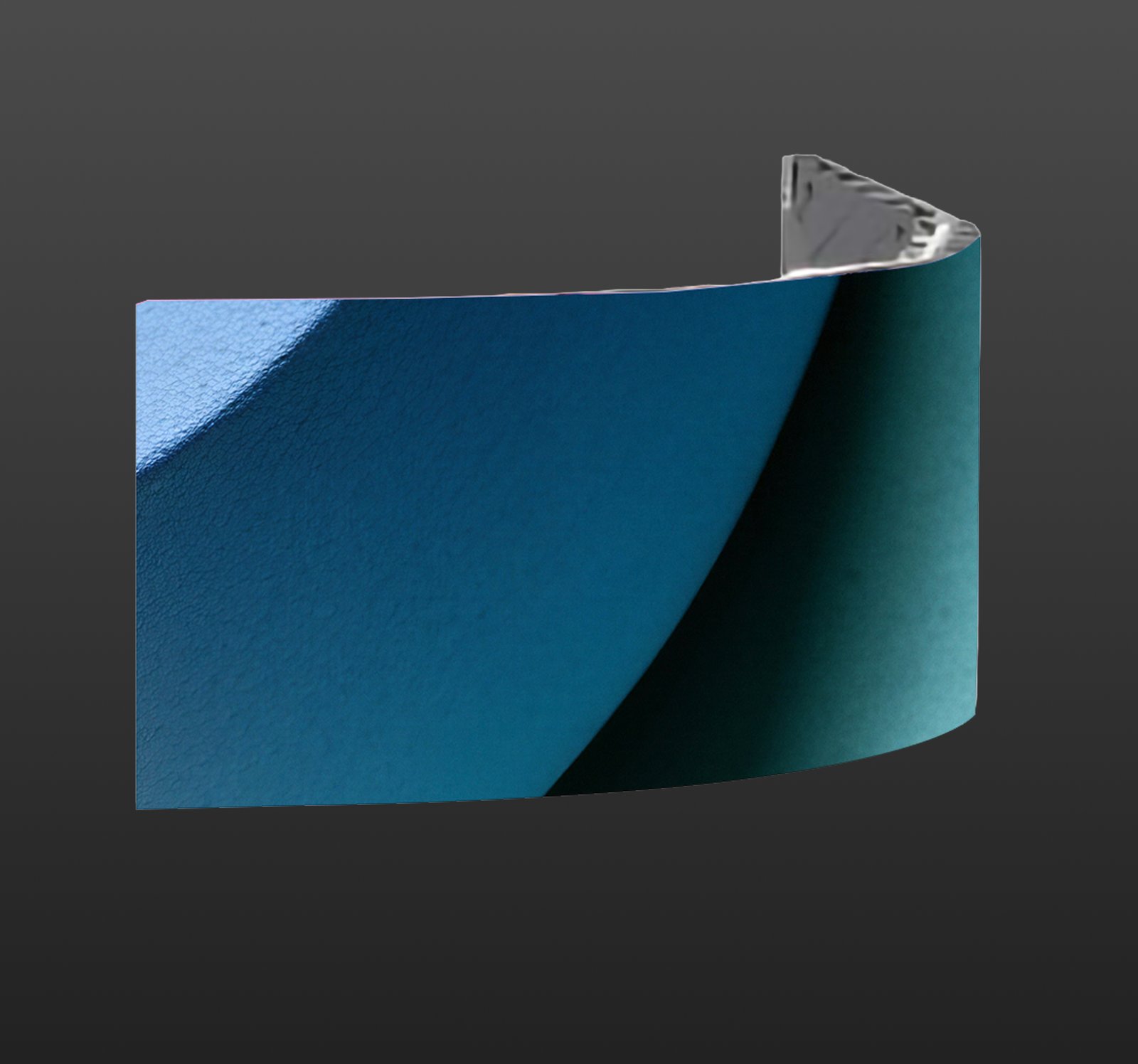

Creative Corner
Corner-screen configurations for L-shaped and wrap-around spaces. Combine with XR Wrap for curved installations.
03 / KEY FEATURES
Built around
what matters.
01 / 07Sustainable energy saving platform

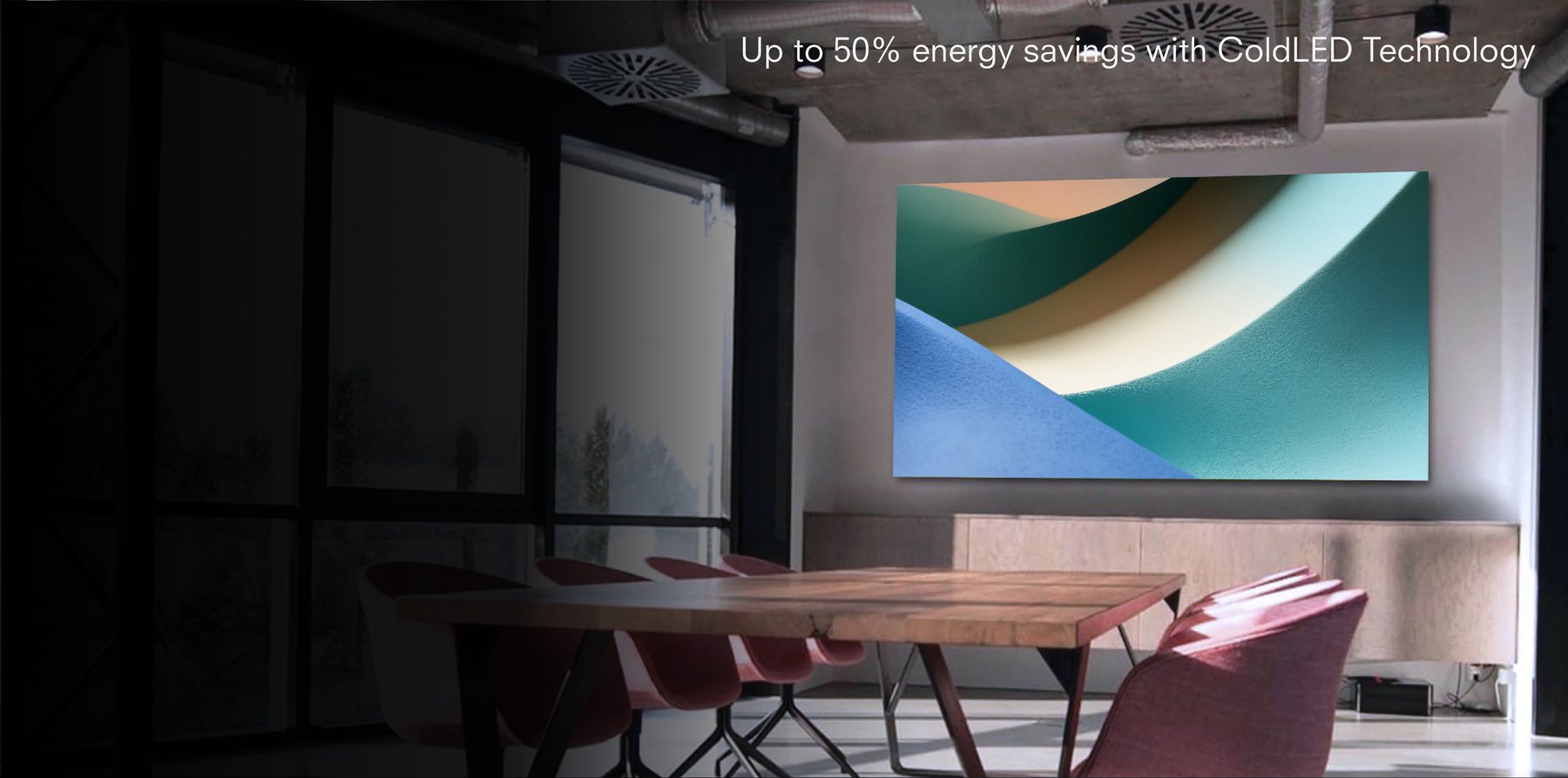

Sustainable energy saving platform
Cooler operation for higher stability and lower operating cost.

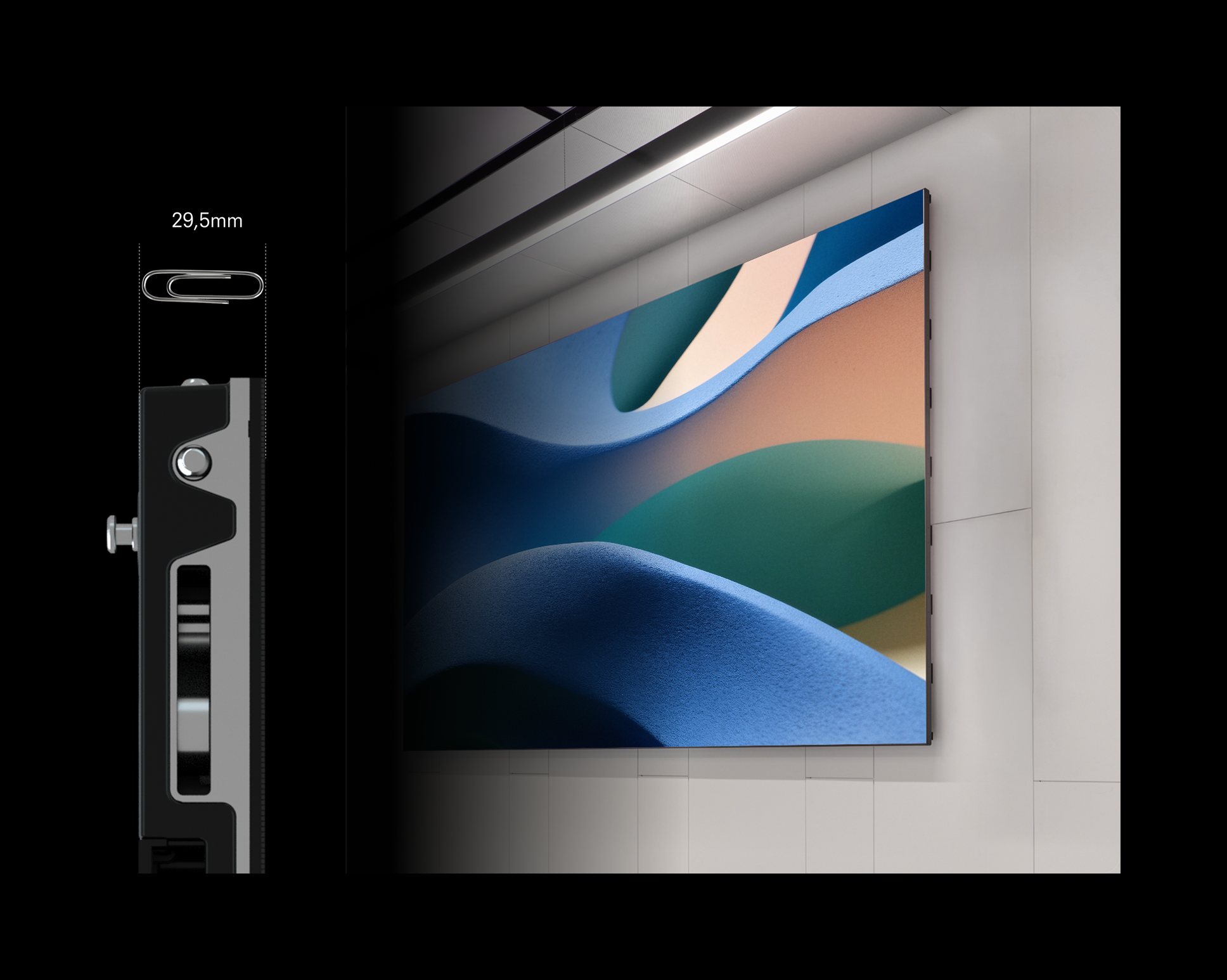

Ultra-Thin 29.7 mm Profile
Fits tight depth constraints in premium interiors and control rooms.
Premium HDR10 image quality
Capable strong contrast and stable visuals for critical spaces.
30,000:1 Contrast
Extreme black levels and high color accuracy for broadcast and XR use.

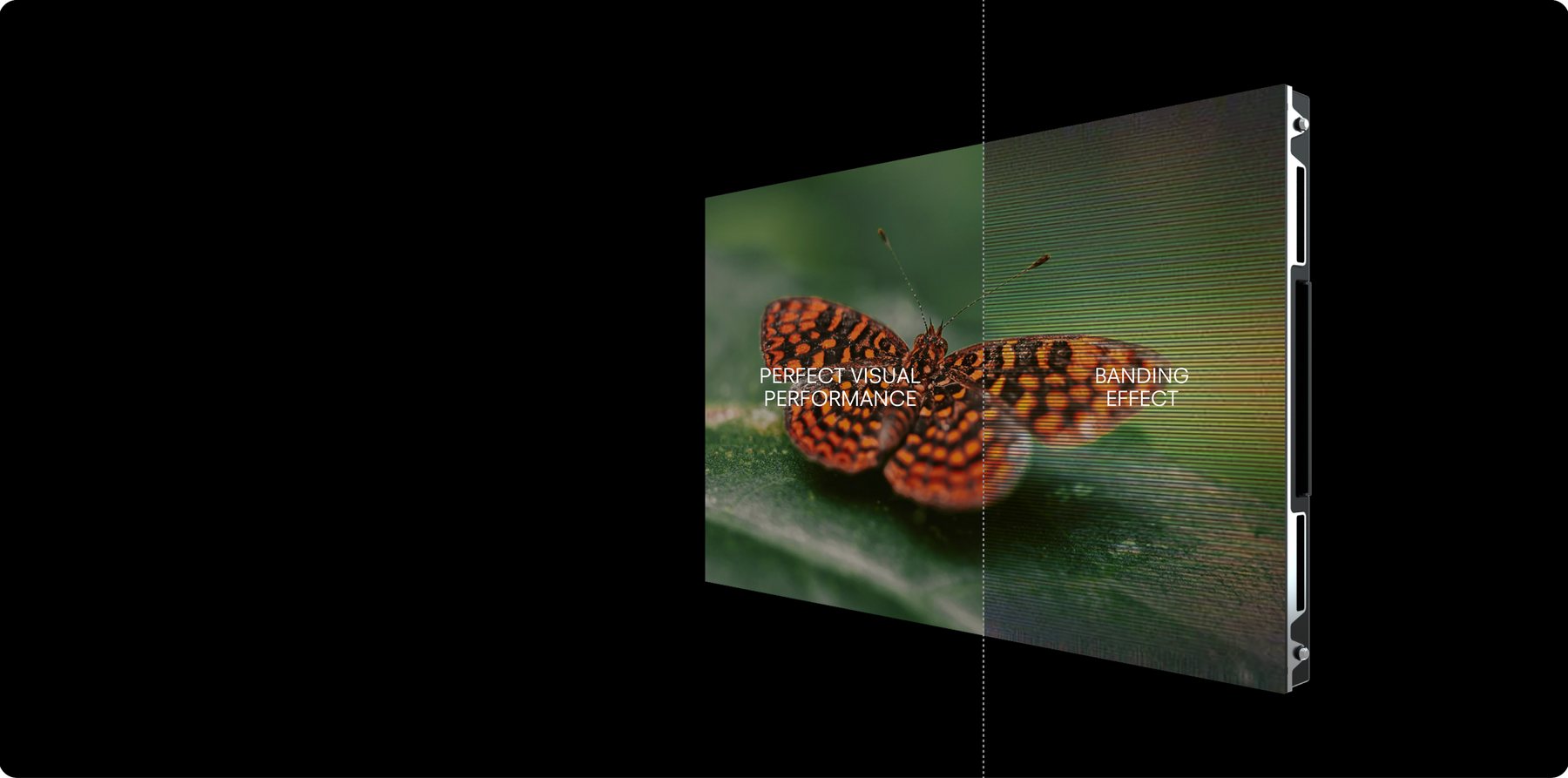

High Refresh up to 7,680Hz
Camera-ready visuals with nanosecond response playback.

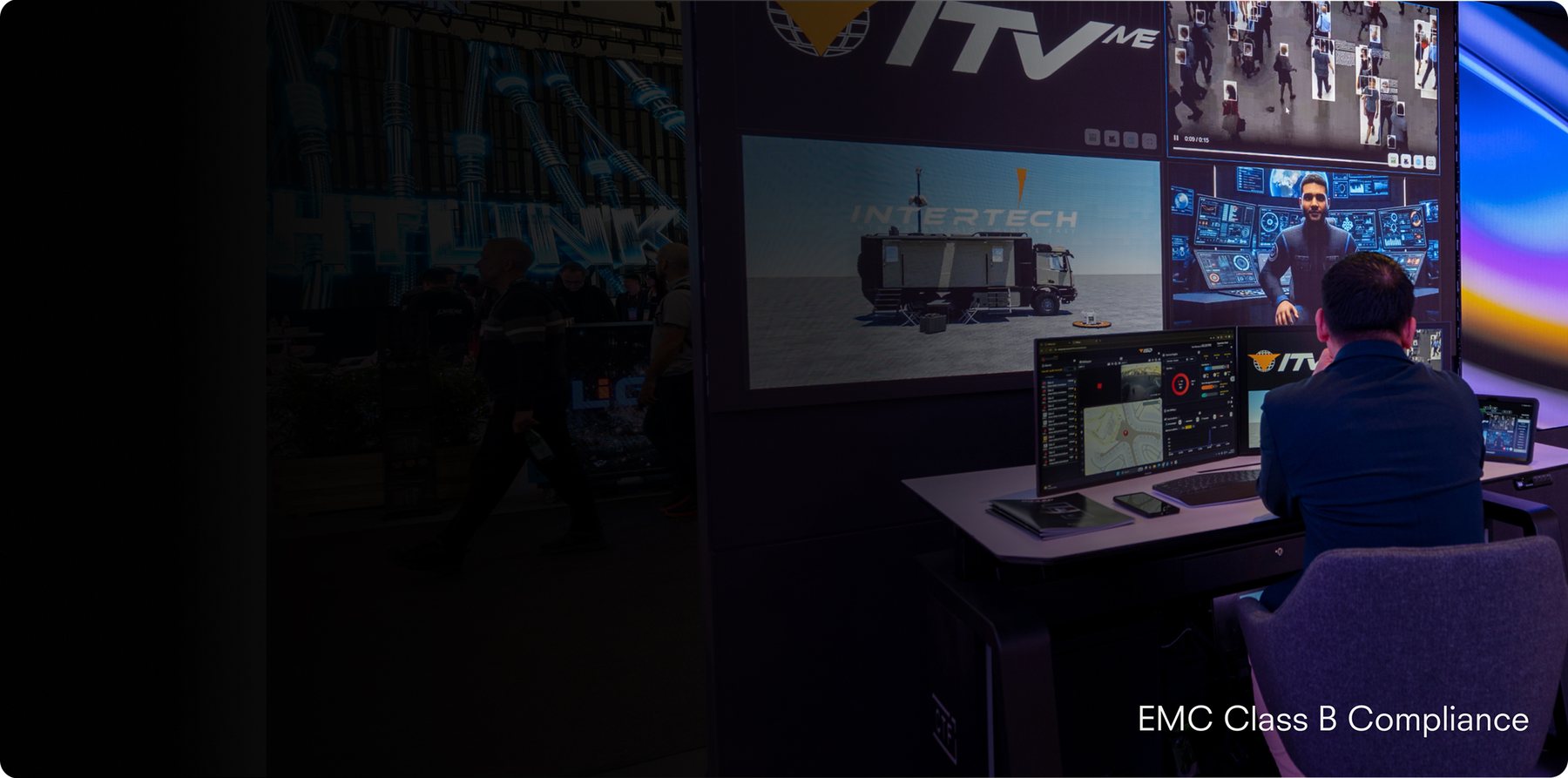

EMC Class B Certified
Meets strict control room and command center compliance requirements.

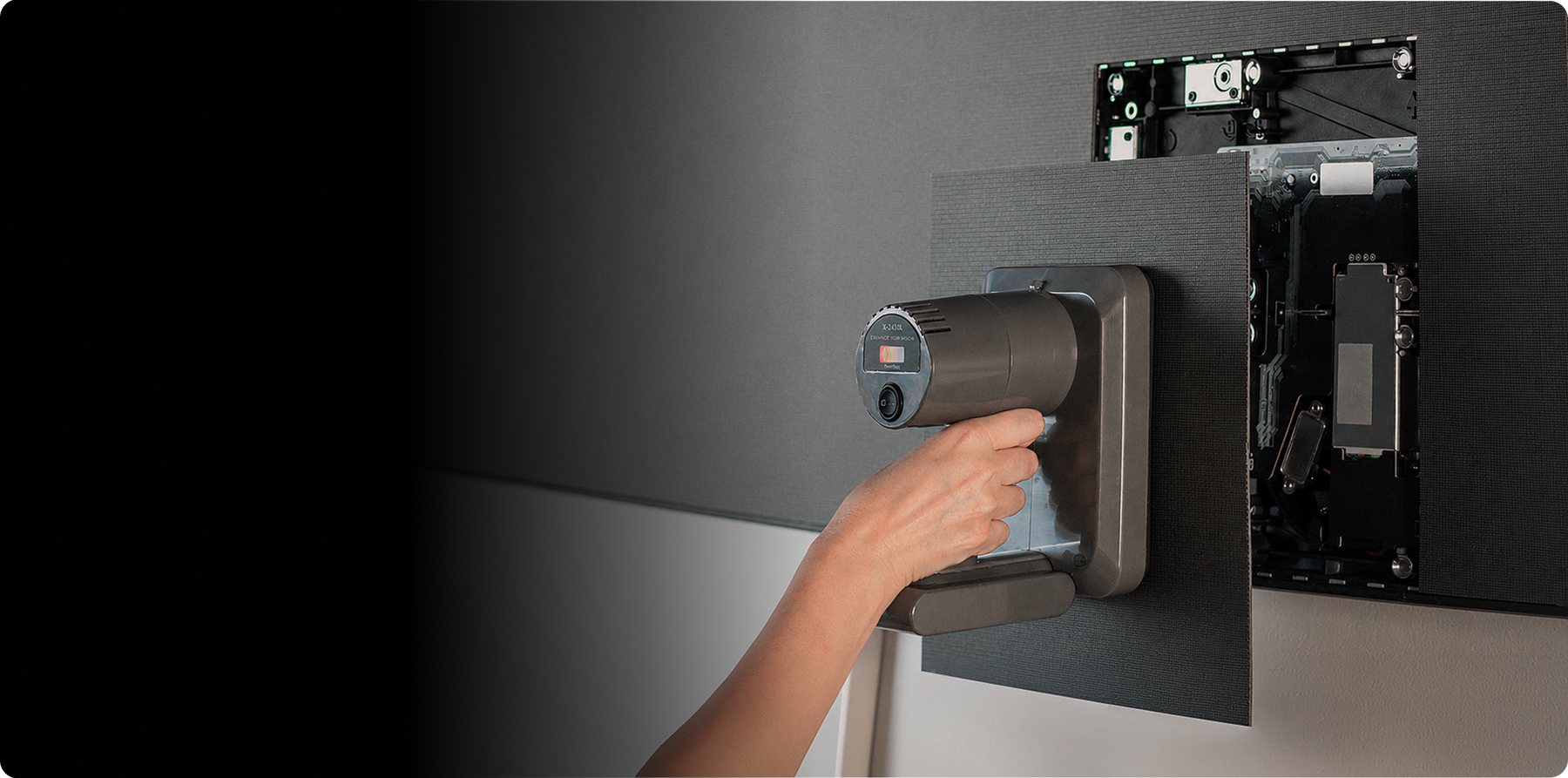

Front service maintenance
Minimizes disruption in 24/7 environments
04 / SPECIFICATIONS
Technical data.
Model-level data for the XR Fine platform. Values not yet confirmed are marked and will be populated from the official datasheets.
09 MODELS — SCROLL HORIZONTALLY →
MODEL
IL-FISS-IRWP1.2 Lite
DATASHEET
IL-FISS-IRWP1.2 Flip
DATASHEET
IL-FISS-IRWP1.5 Lite
DATASHEET
IL-FISS-IRWP1.8 Lite
DATASHEET
IL-FISS-IRWP1.56 Flip
DATASHEET
IL-FISS-IRWP1.87 Flip
DATASHEET
IL-FISS-IRWP2.3 Lite
DATASHEET
IL-FISS-IRWP2.5 Lite
DATASHEET
IL-FISS-IRWP3.1 Lite
DATASHEET
GENERAL
IN / OUT
INDOOR
INDOOR
INDOOR
INDOOR
INDOOR
INDOOR
INDOOR
INDOOR
INDOOR
LED ARRANGEMENT
3-in-1 SMD
Flip chip
3-in-1 SMD
3-in-1 SMD
Flip chip
Flip chip
3-in-1 SMD
3-in-1 SMD
3-in-1 SMD
PHYSICAL
PIXEL PITCH
1.25 mm
1.25 mm
1.56 mm
1.87 mm
1.56 mm
1.87 mm
2.34 mm
2.5 mm
3.12 mm
PHYSICAL DENSITY
640,000 px/m²
640,000 px/m²
409,600 px/m²
284,444 px/m²
409,600 px/m²
284,444 px/m²
182,044 px/m²
160,000 px/m²
102,400 px/m²
MODULE RESOLUTION (H/V)
240 × 135 px
240 × 135 px
192 × 108 px
160 × 90 px
192 × 108 px
160 × 90 px
128 × 72 px
120 × 135 px
96 × 54 px
MODULE DIMENSIONS
300 × 168.8 mm
300 × 168.8 mm
300 × 168.8 mm
300 × 168.8 mm
300 × 168.8 mm
300 × 168.8 mm
300 × 168.8 mm
300 × 337.5 mm
300 × 168.8 mm
CABINET RESOLUTION (H/V)
480 × 270 px
480 × 270 px
384 × 216 px
320 × 180 px
384 × 216 px
320 × 180 px
256 × 144 px
240 × 135 px
192 × 108 px
CABINET DIMENSIONS
600 × 337.5 mm
600 × 337.5 mm
600 × 337.5 mm
600 × 337.5 mm
600 × 337.5 mm
600 × 337.5 mm
600 × 337.5 mm
600 × 337.5 mm
600 × 337.5 mm
CABINET WEIGHT
5.2 kg (11.46lb)
5.2 kg (11.46lb)
5.2 kg (11.46lb)
5.2 kg (11.46lb)
5.2 kg (11.46lb)
5.2 kg (11.46lb)
5.2 kg (11.46lb)
5.2 kg (11.46lb)
5.2 kg (11.46lb)
OPTICAL
BRIGHTNESS
800 nits
1000 nits
800 nits
800 nits
1000 nits
1000 nits
1000 nits
1200 nits
1200 nits
REFRESH RATE
3,840 Hz
3,840 Hz
3,840 Hz
3,840 Hz
3,840 Hz
3,840 Hz
3,840 Hz
3,840 Hz
3,840 Hz
SCAN RATE
1/30
1/27
1/27
1/30
1/27
1/30
1/24
1/30
1/24
VIEWING ANGLE (H/V)
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
160°/160°
ELECTRICAL
MAX POWER (W / PANEL)
135 W
55 W
150 W
150 W
71 W
61 W
105 W
105 W
120 W
AVG POWER (W / PANEL)
45 W
18 W
50 W
50 W
24 W
20 W
35 W
35 W
40 W
OPERATING POWER SOURCE
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
100-240V AC, 50/60 Hz
SIGNAL INPUT
DVI · HDMI · DP · SDI · RJ45
DVI · HDMI · DP · SDI · RJ45
DVI · HDMI · DP · SDI · RJ45
DVI · HDMI · DP · SDI · RJ45
DVI · HDMI · DP · SDI · RJ45
DVI, HDMI, DP, SDI, RJ45
DVI · HDMI · DP · SDI · RJ45
DVI · HDMI · DP · SDI · RJ45
DVI · HDMI · DP · SDI · RJ45
ENVIRONMENTAL
IP RATING
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
IP30
OPERATING TEMPERATURE
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
-10°C ~ +45°C
TRANSPARENCY
0%
0%
0%
0%
Datasheet pending
Datasheet pending
0%
0%
0%
CERTIFICATIONS
CE · FCC · ETL · CB · RoHS · REACH · WEEE
CE · FCC · ETL · CB · RoHS · REACH · WEEE
CE · FCC · ETL · CB · RoHS · REACH · WEEE
CE · FCC · ETL · CB · RoHS · REACH · WEEE
CE · FCC · ETL · CB · RoHS · REACH · WEEE
CE · FCC · ETL · CB · RoHS · REACH · WEEE
CE · FCC · ETL · CB · RoHS · REACH · WEEE
CE · FCC · ETL · CB · RoHS · REACH · WEEE
CE · FCC · ETL · CB · RoHS · REACH · WEEE
* Calculated from pitch and cabinet size — pending confirmation from the official datasheet.
05 / IN THE FIELD
Projects built
with XR Fine.
ALL PROJECTS →

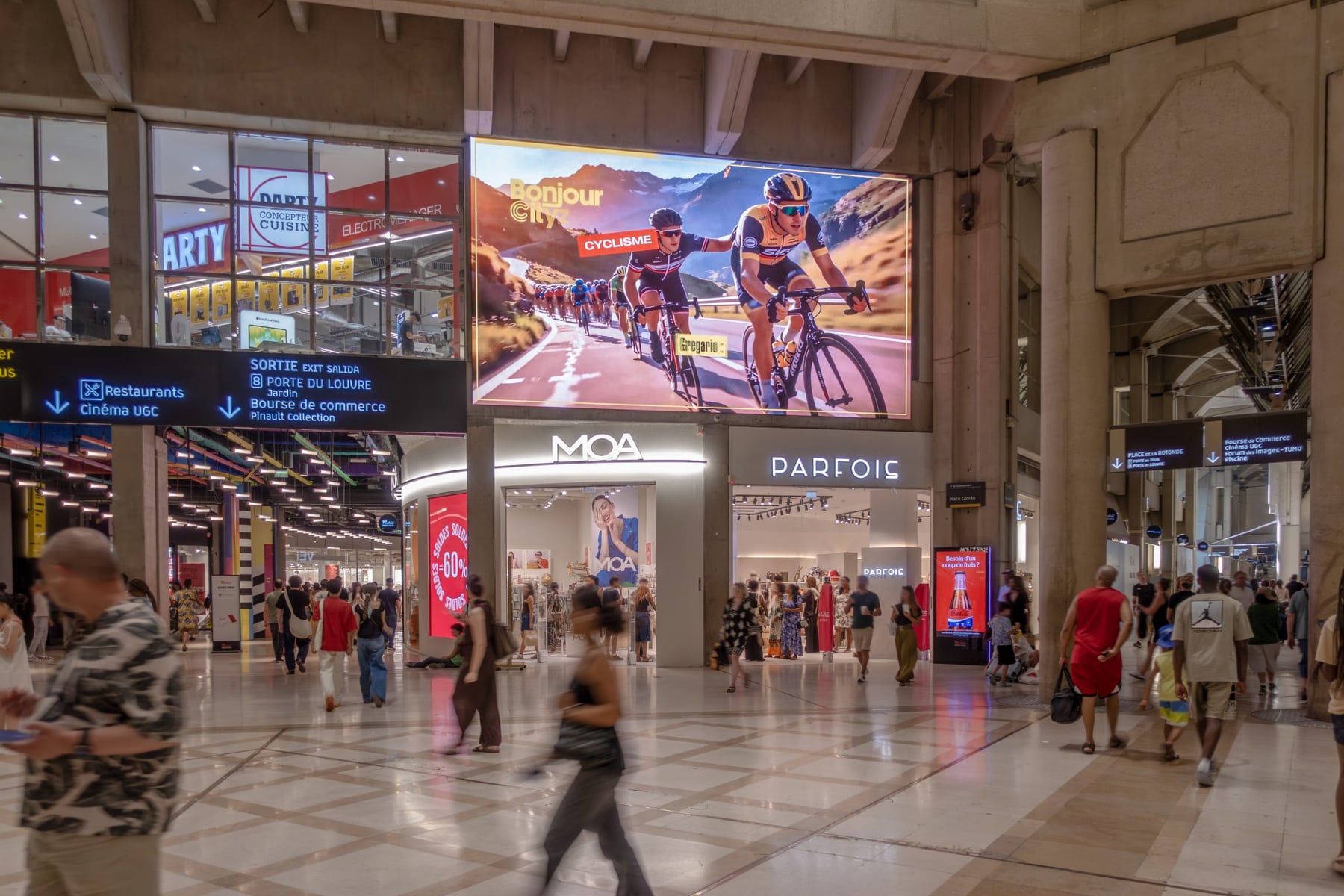

XERON, SCENARCHIE AND BTB AUDIOVISUEL DELIVER NEW DIGITAL IMPACT IN PARIS — France / 2026

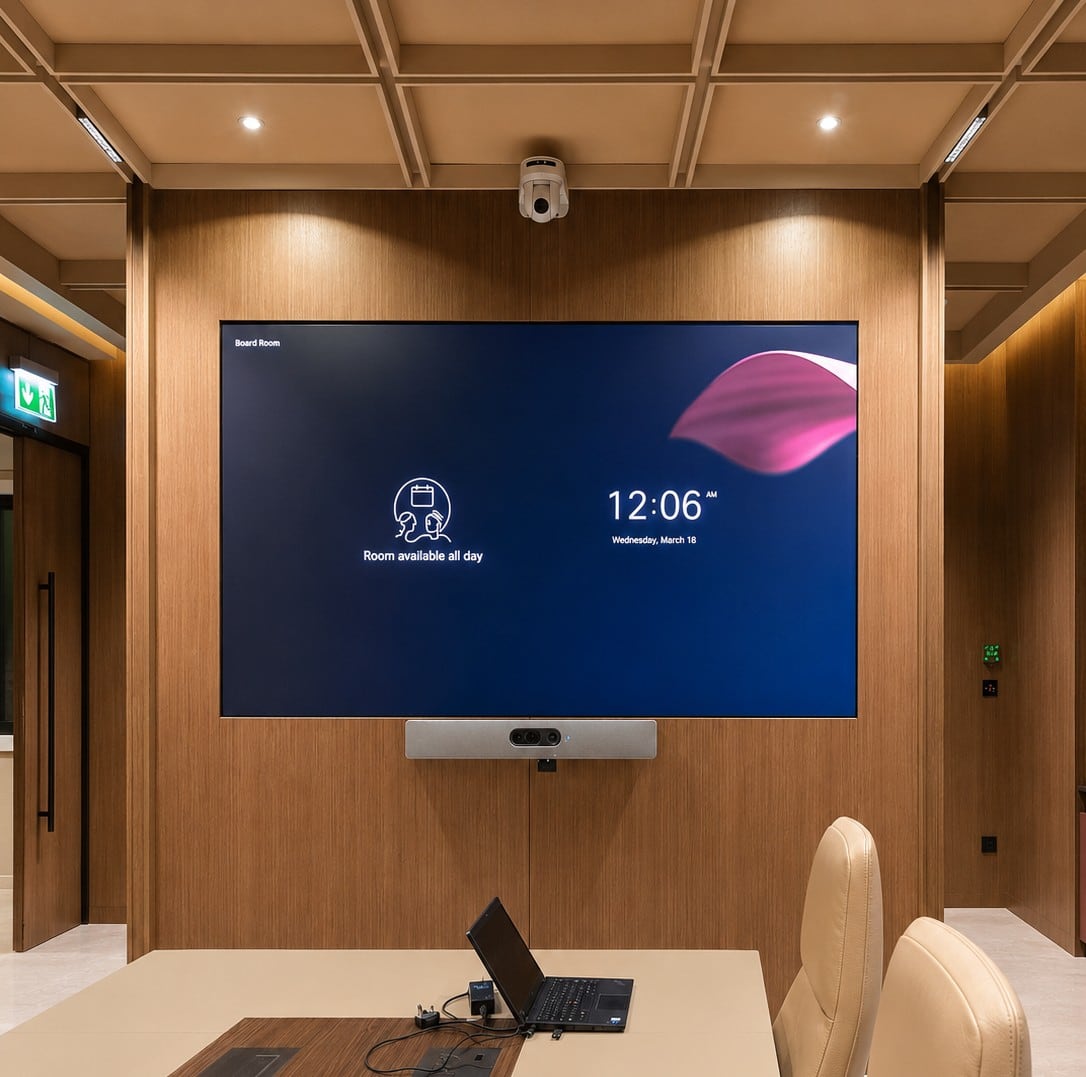

XERON LED SCREENS FOR SAUDI ARABIA’S MINISTRY OF CULTURE — Saudi Arabia / 2026
